Alde 3030 compact plus heating

The Alde Compact 3030 Plus is an advanced heating and hot water system designed for motorhomes and caravans, offering home-like comfort, even in cold climates. Ideal for those who want complete independence when traveling, this system provides water heating and continuous hot water without interruptions, allowing for long, relaxing showers without worrying about running out of hot water. Its intelligent technology automatically adjusts the energy used to maximize efficiency and comfort, all with simple operation from its modern control panel.

ADVANTAGES:

-Continuous hot water - up to 4 liters per minute

-No waiting time to reheat hot water

• Showers without interruptions for the whole family

-Boost function to get hot water instantly at the tap

-Possibility of enjoying long and comfortable showers

-20% larger hot water tank – now 10 liters

CHARACTERISTICS:

• Weight without liquid: 15.3 kg

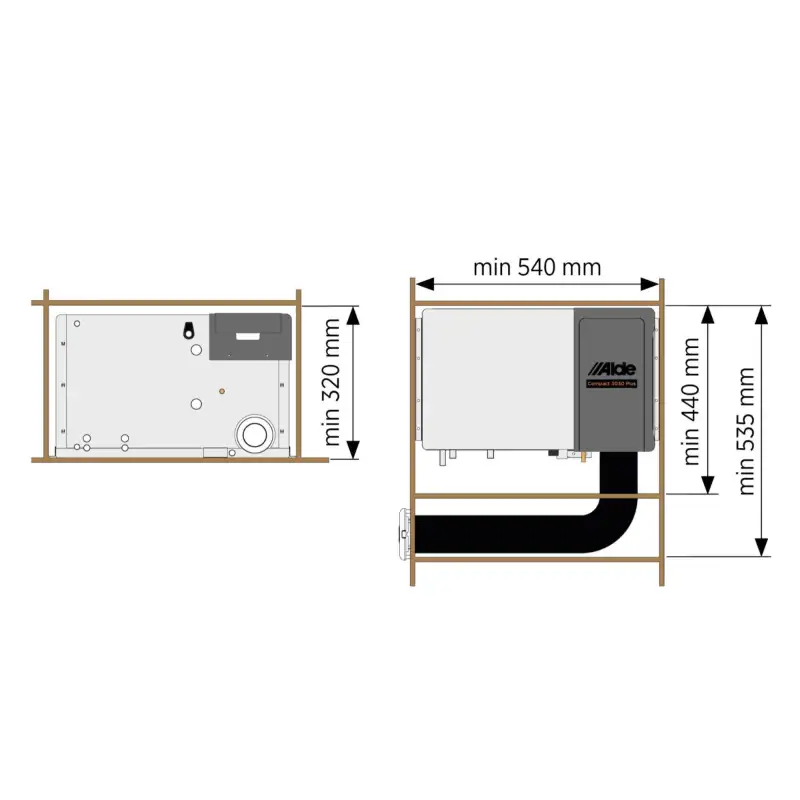

• Dimension (Height x Width x Length): 310 x 340 x 510 mm

• Gas: Propane/Butane

• Power Stage 1: 3.3 kW / 3.8 kW

• Gas consumption: 245 g/h / 275 g/h

• Stage 2 Power: 5.5 kW / 6.4 kW

• Gas consumption: 405 g/h / 460 g/h

• Gas pressure: I3+(28-30/37) I3B/P(30) I3B/P(37)

• Liquid volume (glycol mixture): 3.5 liters

• Max pressure of liquid (glycol): 0.05 MPa (0.5 bar)

• Hot water tank volume: 10 liters

• Max pressure of drinking water: 0.3 MPa (3.0 bar)

• Maximum system temperature: 85°C

• Electric heater power (230 - 240 V~): 3150 - 3430 W

• Current consumption (12 V DC): 1.9 amps

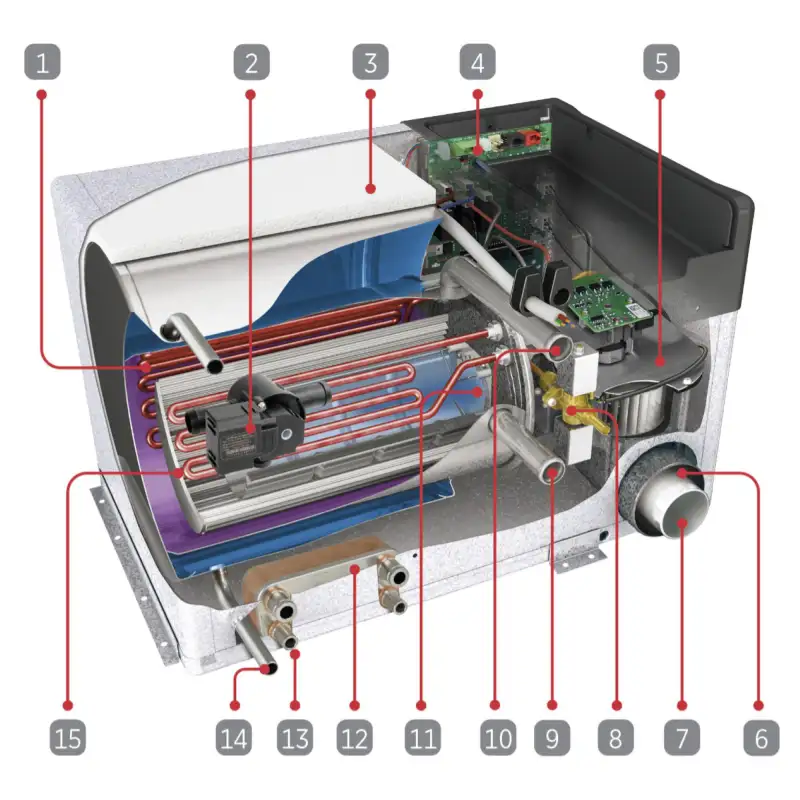

NUMBERED INDICATIONS IMAGE:

2 kW electric heater ((1)), 3-way valve ((2)), Insulation ((3)),

Electronics ((4))

, Combustion fan ((5)),

Air intake (air inlet) ((6))

, Gas outlet (exhaust) ((7))

, Solenoid valve (magnetventil) ((8)),

Heating liquid inlet ((9)),

Heating liquid outlet ((10))

, Burner ((11)),

Flat heat exchanger for hot water ((12))

, Hot water outlet ((13)),

Cold water inlet ((14))

,

1 kW electrical resistance ((16))

.
