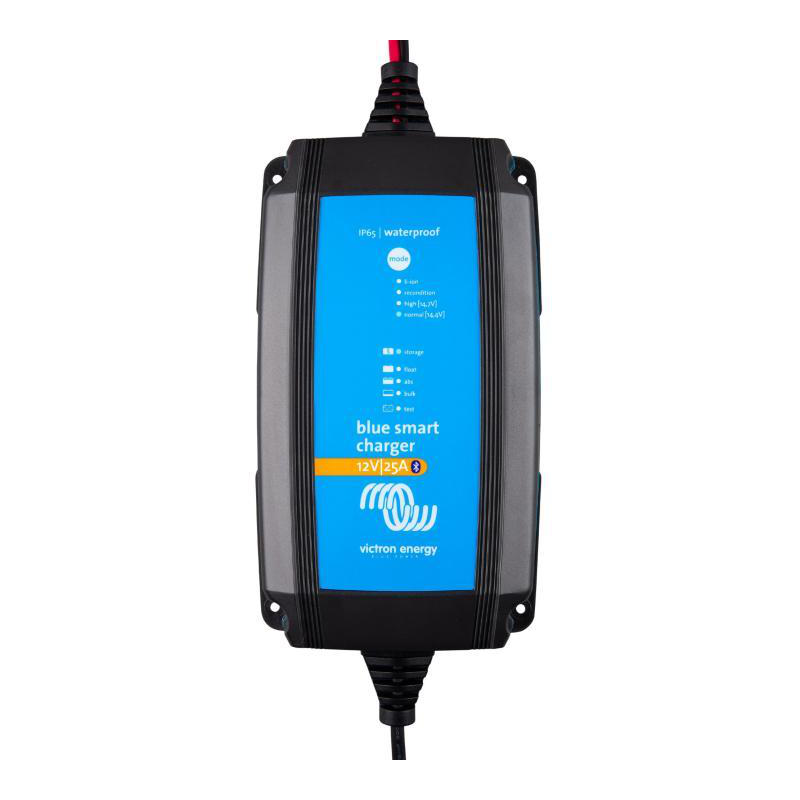

Cargador victron blue smart ip65 12/25 - 230v

Cargador victron blue smart ip65 12/25 - 230v

Name: Cargador victron blue smart ip65 12/25 - 230v
Brand: VICTRON ENERGY
SKU: 170388VL

Ref: 170388VL

Access the B2B area

Log in with your distributor credentials to view prices and offers. If you are not a customer, register to obtain your credentials.

Specifications

Find all the technical specifications, installation instructions, and downloadable files you need to get the most out of this product here.

PESO	1,9 kg
Dimensiones	75 × 140 × 240 mm
Comunicación	Bluetooth mediante la aplicación VictronConnect
Refrigeración	Convección, sin ventilador
Algoritmo de carga	Adaptativo de 7 etapas, 4 etapas para ion litio
Compensación de temperatura	-16 mV/°C / -9 mV/°F
Tensión de entrada de la red	220–240 VCA / 180–265 VCA
Frecuencia de entrada	50–60 Hz / 45–65 Hz
Factor de potencia	> 0,6
Potencia en espera	0,5 W
Eficiencia máxima	0.94
Tensión de carga — Normal	14,4 V / 13,8 V / 13,2 V
Tensión de carga — Alta	14,7 V / 13,8 V / 13,2 V
Tensión de carga — Iones de litio	14,2 V / N/A / 13,5 V
Límite de corriente de carga — Máx.	25 A
Límite de corriente de carga — Baja	10A
Máx. capacidad de batería ≥ 0,1C	250 Ah
Capacidad mínima batería plomo-ácido — Máx.	83 Ah
Capacidad mínima batería plomo-ácido — Baja	33 Ah
Capacidad mínima batería ion litio — Máx.	50 Ah
Capacidad mínima batería ion litio — Baja	20 Ah
Protección frente a fallos	Polaridad inversa, cortocircuito de salida y sobretemperatura
Alimentación y frecuencia Bluetooth	+4 dBm / 2402–2480 MHz
Rango de temperatura de trabajo	-40 a 50 °C, salida nominal completa hasta 30 °C
Máxima humedad	0.95
Material y color	Plástico / Negro
Conexión de alimentación de la red	Cable de red de 1,5 m con enchufe CEE 7/16, CEE 7/17, BS 1363 o AS/NZS 3112
Conexión a la batería — Tipo	Igual
Conexión a la batería — Cable	10 AWG
Grado de protección IP	IP65

PLANO MEDIDAS
