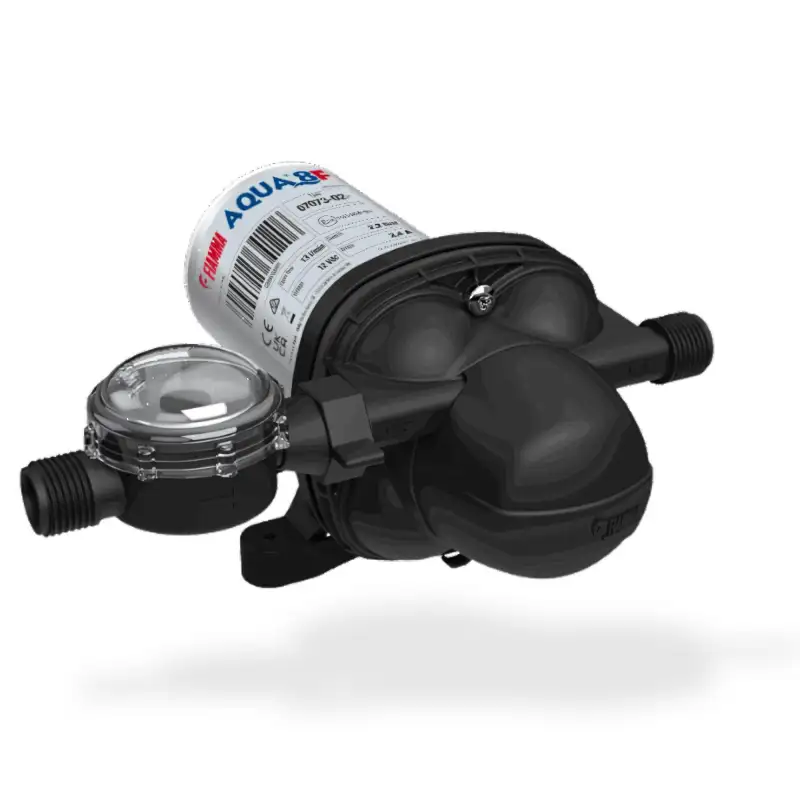

Water pump 13l/min fiamma aqua 8f 12v
Specifications
Find all the technical specifications, installation instructions, and downloadable files you need to get the most out of this product here.
The Fiamma Aqua 8F 13L is the most powerful pump in the Aqua 8F series, developed to supply a high and constant flow rate of up to 13 liters per minute, ideal for large motorhomes, campers with several water points, boats or any mobile hydraulic system that requires high performance.
Thanks to its design with four internal chambers, this pump guarantees a powerful, constant and silent flow. The one-piece rubber membrane provides a tight, reliable seal, preventing leaks and improving system efficiency.
It can be installed in any position and is designed to run dry without damage, providing great safety and ease of use. In addition, it includes an adjustable pressure switch that automatically activates and stops the pump when you open or close a tap, optimizing energy consumption and improving comfort.
The stainless steel filter included as standard is removable, washable and repositionable, allowing for more flexible installation and simple maintenance. The pump also features thermal protection with automatic reset and is KTW approved, ensuring safe use with potable water.
CHARACTERISTICS:
- Supply voltage: 12V (±30%)
Maximum flow: 13 liters/minute (at 0 bar)
Electrical consumption: minimum 2.4 A / maximum 5 A
Pressure switch activation pressure: 2.2 bar (31.9 psi)
Sound level: 50 dB (low noise)
Dry running: yes, no damage
Number of cameras: 4
Filter included: stainless steel, 45 mesh
Thermal protection: yes, with automatic reset
Water temperature: +4 °C to +40 °C
- Suction lift (prevalence): < 5 meters
- Protection grade: IP20
Approval: KTW (use with drinking water)
- Weight: 2.2kg
HIGHLIGHTED BENEFITS:
- Maximum flow capacity within the Aqua 8F range
Compact, quiet and reliable
Ideal for vehicles with high water demand
Flexible installation in any orientation
Suitable for use with drinking water
Filter included for longer system life
| VALIDO PARA | Autocaravanas grandes, campers, embarcaciones |
| CONSUMO | Mínimo 2,4 A / Máximo 5 A |
| TENSIÓN | 12V (±30%) |
| HOMOLOGADO | SI |
| HOMOLOGADO | Sí, norma KTW |
| TIPO | Bomba de agua a presión |
| INCLUYE | Filtro de acero inoxidable |
| CAPACIDAD | Caudal máximo 13 l/min |
| REGULABLE | Presostato ajustable |
| TAMAÑO | Compacta |
| PESO | 2,2 kg |
| PRESIÓN | 2,2 bar (31,9 psi) |
| FUENTE DE ENERGIA | Eléctrica (12V DC) |
| RANGO TEMPERATURA AGUA | +4 °C a +40 °C |
| TIPO DE INSTALACIÓN | Cualquier orientación |
| NIVEL DE RUIDO | 50 dB |
| FUNCIONAMIENTO EN SECO | Sí |
| NÚMERO DE CÁMARAS | 4 |
| GRADO DE PROTECCIÓN AGUA | IP20 |
| PREVALENCIA DE ASPIRACIÓN | < 5 metros |
| CAUDAL | 13 l/min (a 0 bar) |
