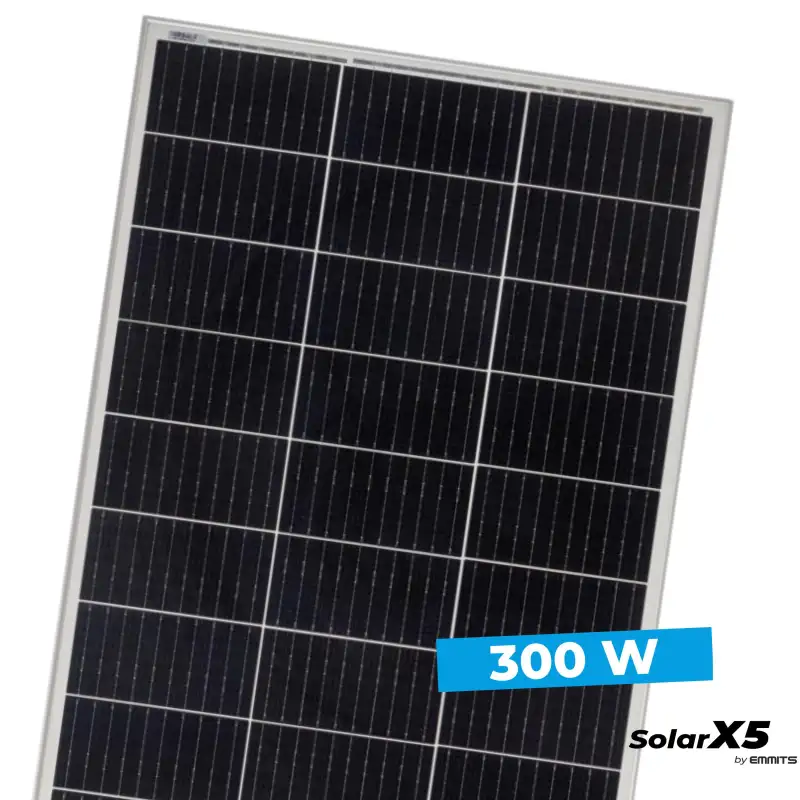

Monocrystalline solar panel 300w

Power, efficiency and durability combine in the SOLAR X5 300W solar panel

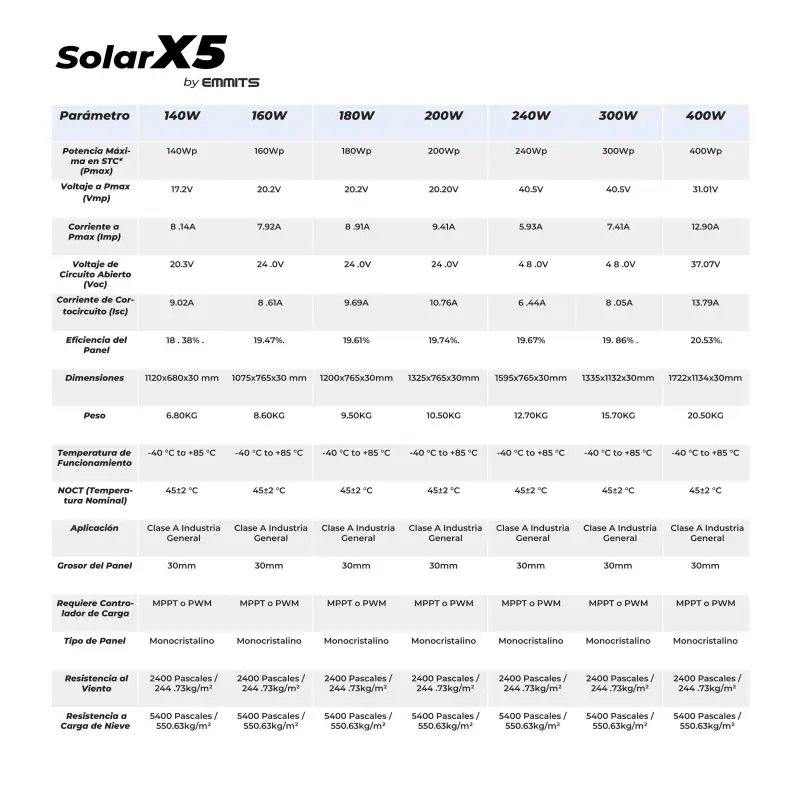

CHARACTERISTICS:

-Maximum power (Pmax): 300W

-Voltage at Pmax (Vmp): 40.5V

-

Current at Pmax (Imp): 7.41A

-

Open circuit voltage (Voc): 48.0V

-Short circuit current (Isc): 8.05A

-Panel efficiency: 19.86%

-

Dimensions: 1335 x 1132 x 30mm

-

Weight: 15.70kg

-Cell type: Monocrystalline

-Application: Class A - General Industry

-

Requires charge controller: MPPT or PWM

-

Operating temperature: -40°C to +85°C

-

Nominal temperature (NOCT): 45 ± 2 °C

-

Wind resistance: Up to 2400 Pascals (equivalent to 244.73 kg/m²)

-Resistance to snow loads: Up to 5400 Pascals (550.63 kg/m²)

PERC TECHNOLOGY & MBB:

This panel incorporates PERC bifacial cell technology, which thanks to its rear passivation layer, reflects unused sunlight back to the cell, improving energy capture and reducing losses due to electron recombination. The result? More electricity generated with the same sunlight. Multiple bus bars allow better electron conduction, minimizing resistance losses and improving module durability. This means a more resistant, efficient panel with a longer useful life.

MATERIALS:

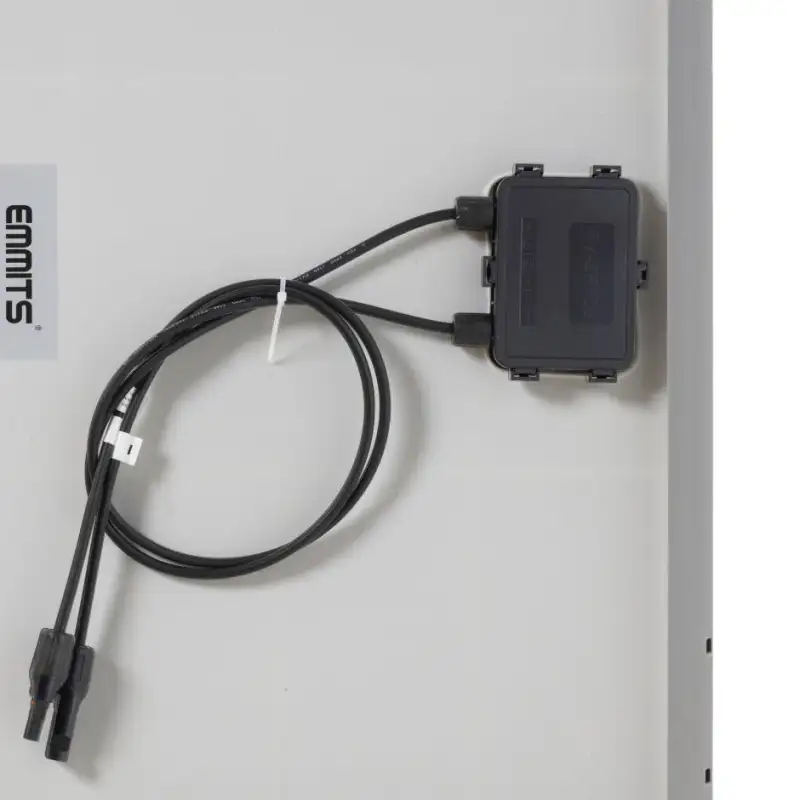

Manufactured with 3.2 mm ultra-white tempered glass with low iron content (Fe2O3 < 150×10?6), this panel achieves a light transmittance greater than 91%, guaranteeing greater light collection. Additionally, the suede-like coating reduces reflectivity, maximizing solar absorption. Designed to withstand extreme conditions, the IP67 waterproof back box protects all electrical components from the ingress of dust and water, ensuring long-term safe and stable operation.
