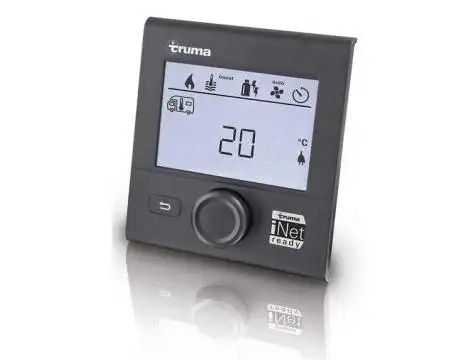

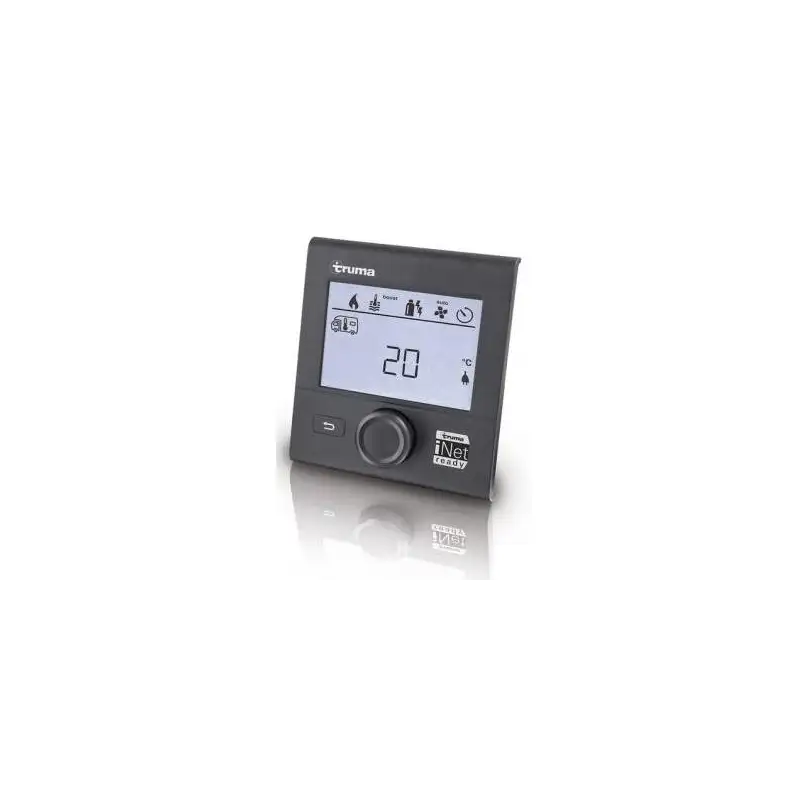

Truma cp plus inet control panel

The Truma CP plus iNet ready is a digital control unit for Truma Combi heaters (since May 2013) and Aventa and Saphir air conditioning systems. With it you can quickly and easily adjust the room and water temperature in your caravan or home vehicle.

If you have installed both a Truma air conditioning system and a Combi heater, the automatic climate control function regulates the temperature in the vehicle automatically, whether it is hot or cold outside.

The digital control unit is compatible with all Truma devices with iNet capability and can be retrofitted for them. In addition, it is expandable with the Truma iNet Box. It connects Truma devices so that you can conveniently control them remotely using the smartphone app.

Intuitive operation with the practical turn/push button

Programming the water temperature and room temperature using a timer clock

The automatic climate control adapts the Combi heating and the Truma air conditioning system automatically to each other

The CP-Plus control can be retroactively mounted on Combi heaters from 2007 that have changed the circuit to version V05 for Gas and V06 for Diesel. NOT compatible with Trumatic C model heaters.

Supply voltage: 8V – 16.5V

CP plus interfaces: TIN bus

CP plus CI-BUS interfaces: TIN-Bus, CI-BUS

Weight approx. 100g

Measurements (L x W x H): 92 x 103 x 40 mm

Compatible devices:

Truma Combi, Combi E from software version V05.00.00

Truma Combi D, Combi D 6 E from software version V06.00.00

Aventa Eco, Aventa Comfort from serial number 24084022 – 04/2013

Saphir Comfort RC, Saphir Compact from serial number 23091001 – 04/2012 (coupling required)
