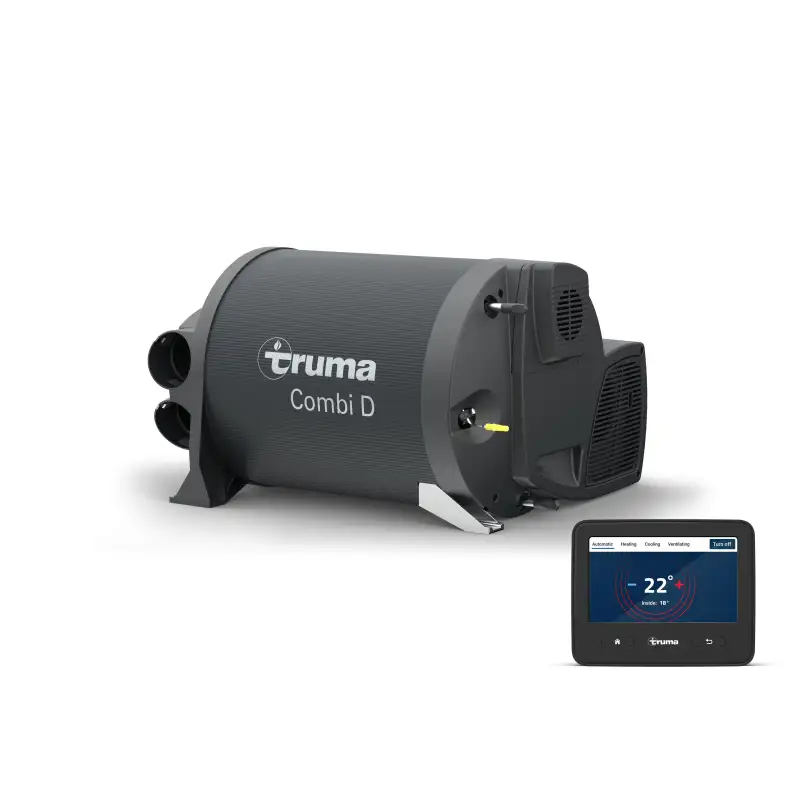

Combi 6 diesel ng

The Truma Combi D 6 is a powerful diesel heater with which you can also heat water at the same time.

It is especially suitable for large residential vehicles.

The powerful burner is fan-assisted, so that the heating of the motorhome also works while driving. In summer you can use only the hot water function, without having to use the heating.

THE FOLLOWING WATER CONNECTION KIT IS REQUIRED FOR INSTALLATION:

110500.01 FOR CLAMP TUBE CONNECTIONS

110500.02 FOR JOHN GUEST TYPE CONNECTIONS

Optimal distribution of hot air thanks to the silent and powerful fan

It is compact and space-saving, so the Combi D 6 has flexible installation

Low power consumption

Energy carrier: diesel according to EN 590

Nominal thermal power in operation by diesel burner: 1000 W/2000 W/3000 W/4000 W/5000 W/6000 W

Fuel consumption: 100 – 600 ml/h (100 ml/h in case of average heating output power of 1000 W)

Current consumption (at 12 V): Heating and water tank operation: 0.4 – 8.1 A (in normal operation between “off” and “smallest power phase” less than 1.8A)

Water tank heating: max. 0.5A

Water content: 10 liters

Weight approx. 18kg

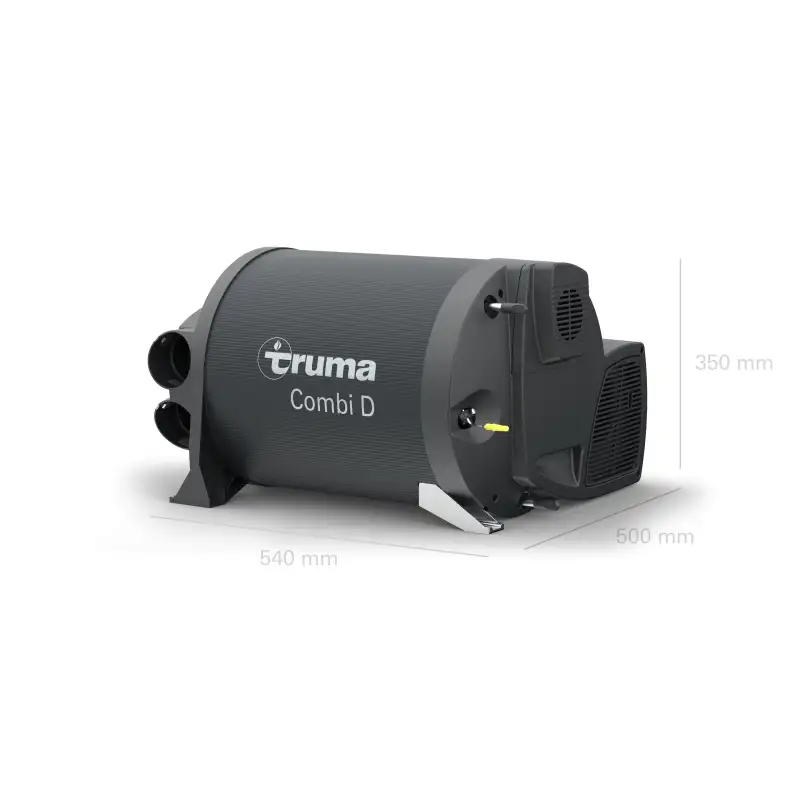

Box measurements (L x W x H): 590 x 490 x 385 mm

Fuel pump included.

Automatic altitude adjustment: The integrated altitude sensor automatically ensures a combustion process

optimal at altitudes up to 3000 m.
