Combi 6 diesel electric ng
Specifications
Find all the technical specifications, installation instructions, and downloadable files you need to get the most out of this product here.
The Truma Combi D 6 is a powerful diesel heater with which you can also heat water at the same time.
It is especially suitable for large residential vehicles.
The powerful burner is fan-assisted, so that the heating of the motorhome also works while driving. In summer you can use only the hot water function, without having to use the heating.
THE FOLLOWING WATER CONNECTION KIT IS REQUIRED FOR INSTALLATION:
110500.01 FOR CLAMP TUBE CONNECTIONS
110500.02 FOR JOHN GUEST TYPE CONNECTIONS
Optimal distribution of hot air thanks to the silent and powerful fan
It is compact and space-saving, so the Combi D 6 has flexible installation
Low power consumption
Energy carrier: diesel according to EN 590
Nominal thermal power in operation by diesel burner: 1000 W/2000 W/3000 W/4000 W/5000 W/6000 W
Fuel consumption: 100 – 600 ml/h (100 ml/h in case of average heating output power of 1000 W)
Resistance power: 900W/1800W
Current consumption (at 12 V): Heating and water tank operation: 0.4 – 8.1 A (in normal operation between “off” and “smallest power phase” less than 1.8A)
Current consumption (at 220 V):
3.9A / 7.8A
Water tank heating: max. 0.5A
Water content: 10 liters
Weight approx. 19kg

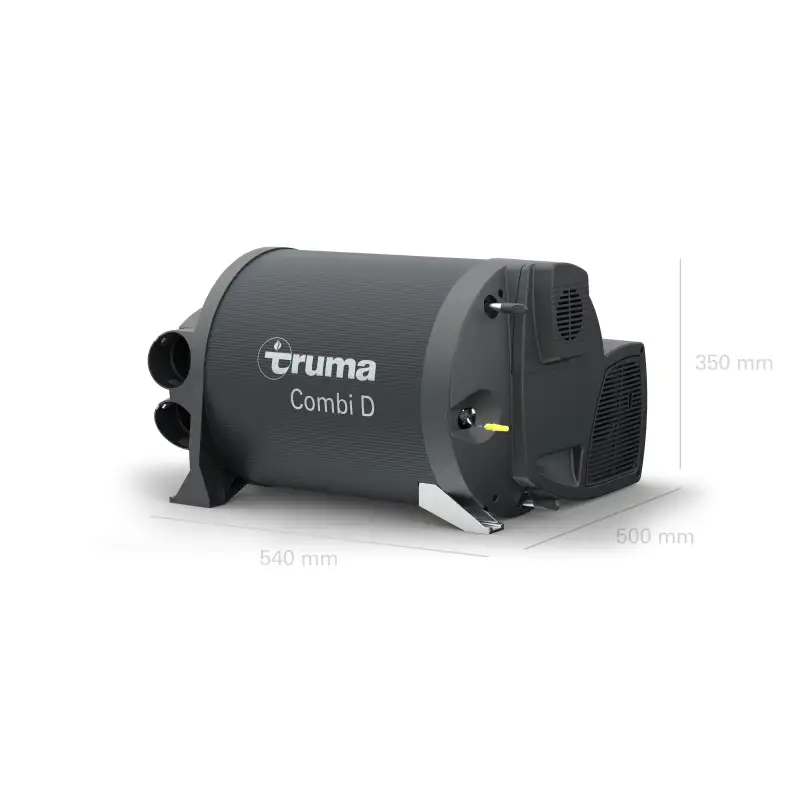

Box measurements (L x W x H): 590 x 490 x 385 mm
Fuel pump included.
Automatic altitude adjustment: The integrated altitude sensor automatically ensures a combustion process
optimal at altitudes up to 3000 m.
