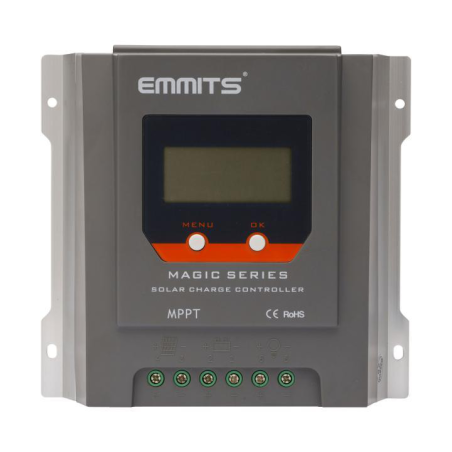

MPPT 60A Solar Charge Regulator
Specifications
Find all the technical specifications, installation instructions, and downloadable files you need to get the most out of this product here.
Emmits 60A MPPT solar charge regulator, designed for high performance solar systems. It incorporates high efficiency MPPT technology, 12V/24V automatic recognition, and compatibility with Gel, AGM, liquid and lithium batteries. It offers safe and optimized charging, integrated electronic protections and monitoring options via LCD screen and RS485, Bluetooth or IoT communication.
HIGH PERFORMANCE AND SECURITY:
- Maximum charging current of 60A
- Maximum input power up to 1500W
- Automatic power reduction due to high temperature for longer life
- Temperature sensor for precise charging and battery protection
- Optimized heat dissipation design for stable operation
MAIN FEATURES:
- State-of-the-art MPPT technology with tracking efficiency greater than 99.9%
- High charge conversion efficiency of up to 98%, thanks to its fully digital technology
- Automatic recognition 12V/24V
- Compatible with Liquid, Gel, AGM and Lithium batteries
- Intelligent charging process in 4 stages: MPPT, Boost, Equalization and Float
- Multiple automatic protections against overload, overcurrent and overtemperature
| Peso | 2.5 kg |
| Corriente máx. de carga | 60A |
| Voltaje del sistema | 12/24V (reconocimiento automático) |
| Tipo de batería | Gel, AGM, Líquida, Litio (por defecto: Gel) |
| Voltaje máx. en terminal de batería | 35V |
| Voltaje MPPT (antes de boost/ecualización) | (PARA GEL/AGM/LÍQUIDA) 14.5/29V (por defecto) |
| Voltaje Boost | (PARA GEL/AGM/LÍQUIDA) 14~14.8V / 28~29.6V @25℃ (def.: 14.8/29.6V) |
| Voltaje de ecualización | (PARA GEL/AGM/LÍQUIDA) 14~15.0V / 28~30V @25℃ |
| Voltaje Float | (PARA GEL/AGM/LÍQUIDA) 13~14.5V / 26~39V @25℃ |
| Reconexión por voltaje | (PARA GEL/AGM/LÍQUIDA) 11.4~12.8V / 22.8~25.6V (def.: 12.0/24.0V) |
| Protección por sobrecarga | (PARA GEL/AGM/LÍQUIDA) 15.8/31.3V |
| Compensación térmica | (PARA GEL/AGM/LÍQUIDA) -4.17 mV/K/celda (Boost, Ecualización) -3.33 mV/K/celda (Float) |
| Voltaje objetivo de carga | (PARA LITIO) 10.0~32.0V (def.: 14.4V) |
| Voltaje de recuperación | (PARA LITIO) 9.2~31.8V (def.: 14.0V) |
| Desconexión por bajo voltaje | (PARA GEL/AGM/LÍQUIDA) 10.8~11.8V / 21.6~23.6V (def.: 11.2/22.4V) |
| Desconexión por bajo voltaje | (PARA LITIO) 9.0~30.0V (def.: 10.6V) |
| Reconexión por bajo voltaje | (PARA LITIO) 9.6~31.0V (def.: 12.0V) |
| Eficiencia de conversión | 98.0% |
| Dimensiones | 262.5 × 186.5 × 97.5 mm |
| Autoconsumo | inferior o igaual a 12 mA |
| Interfaz | RS485 (RJ11) |
| Tipo de tierra | Negativo común |
| Temperatura de operación | -20 ~ +55 ℃ |
| Temperatura de almacenamiento | -25 ~ +80 ℃ |
| Humedad ambiental | 0 ~ 100% RH |
| Grado de protección | IP32 |
| Altitud máxima | 4000 m |
