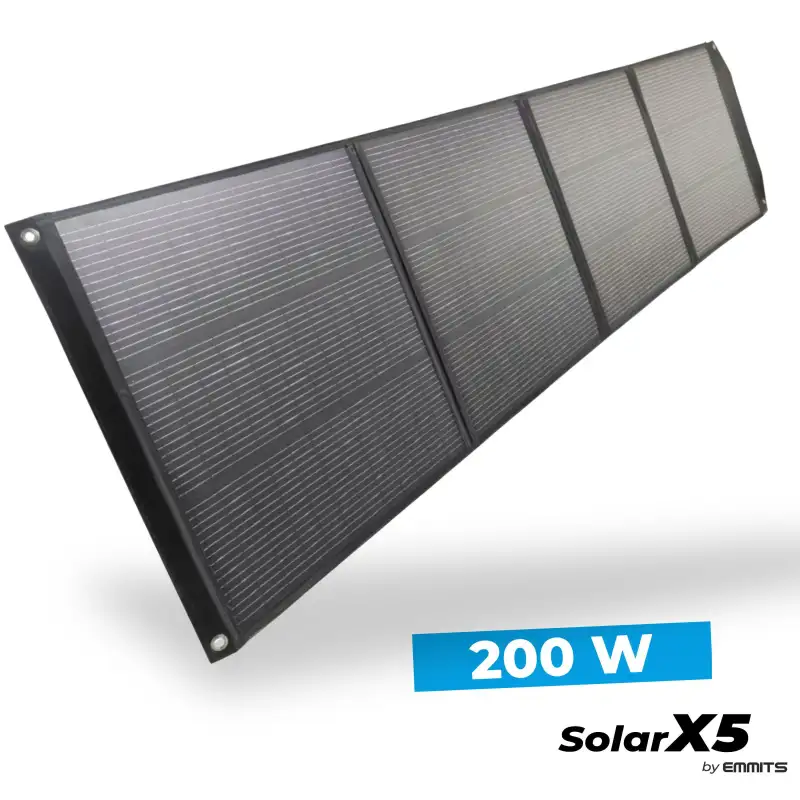

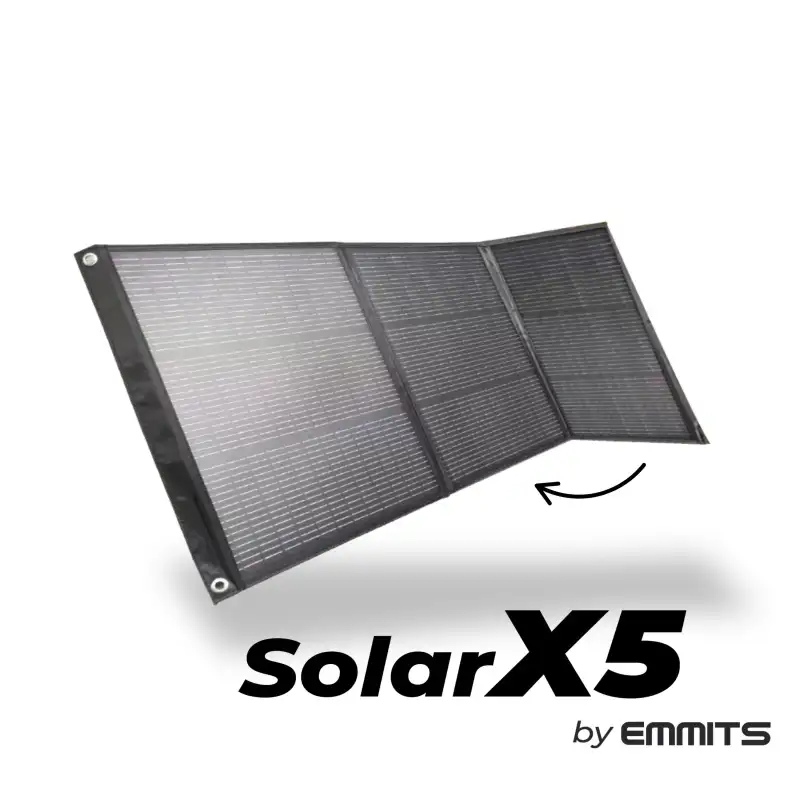

200w foldable solar panel

200W monocrystalline foldable solar panel.

CHARACTERISTICS:

• Bag material: 1680D

• Bag Color: Black

• Unfolded size: 590 × 2240 mm

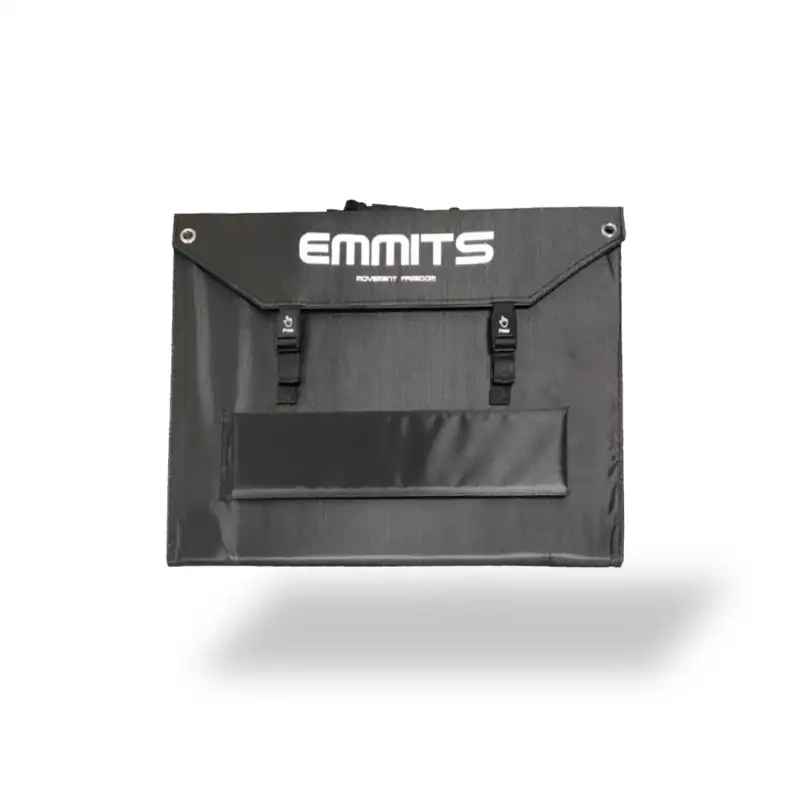

• Folded size: 590 × 490mm

• Net weight: 6.35kg

• Solar cell type: Monocrystalline PERC

• Efficiency rate: 24.2%

• Maximum power (Pmax): 200 W

• Power tolerance: ±5%

• Voltage at maximum power (Vmp): 19.40 V

• Current at maximum power (Imp): 10.30 A

• Open circuit voltage (Voc): 22.80 V

• Short circuit current (Isc): 11.81 A

• Operating temperature: -20°C to 50°C

• Maximum system voltage: 1000 V

• Maximum series fuse: 20 A

• NOCT: 46°C ± 2°C

• Current temperature coefficient (Isc): +0.05%/°C

• Voltage Temperature Coefficient (Voc): -0.35%/°C

• Power temperature coefficient (Pmax): -0.45%/°C

PERC TECHNOLOGY & MBB:

This panel incorporates PERC bifacial cell technology, which thanks to its rear passivation layer, reflects unused sunlight back to the cell, improving energy capture and reducing losses due to electron recombination. The result? More electricity generated with the same sunlight. Multiple bus bars allow better electron conduction, minimizing resistance losses and improving module durability. This means a more resistant, efficient panel with a longer useful life.
